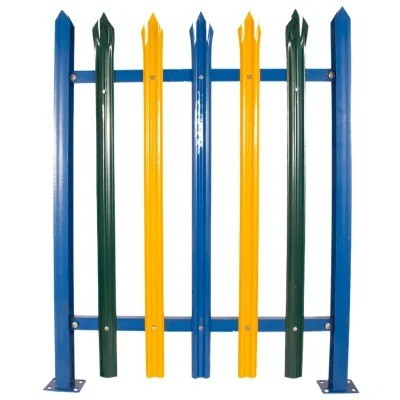

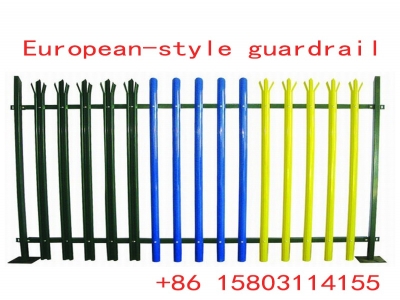

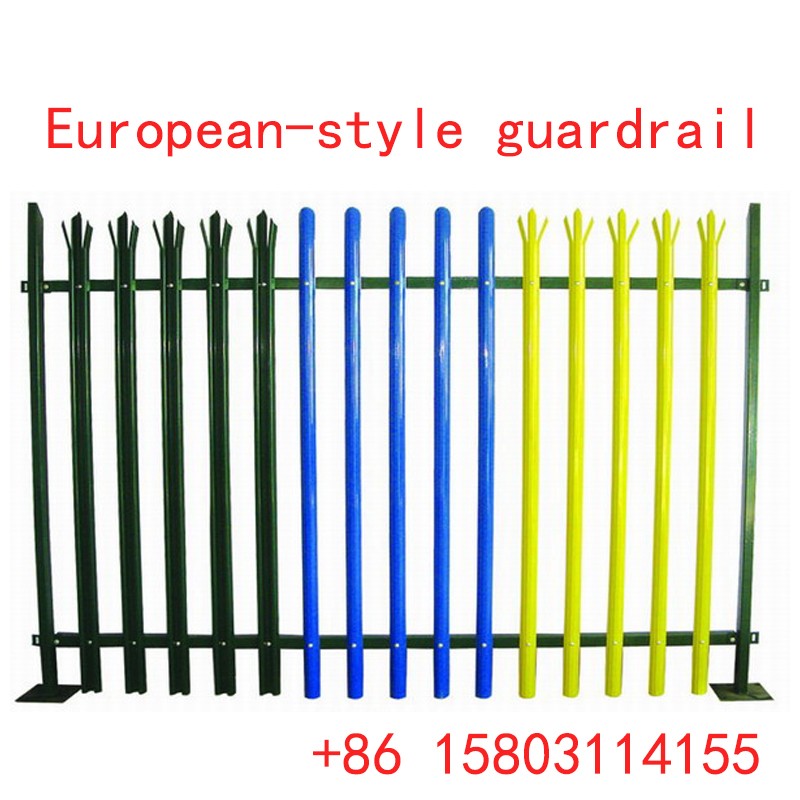

European Style Hot Dip Galvanized Palisade Fencing with I-Beam Construction for Villa Estate Security Perimeter
Product Overview
Engineered for premium residential and institutional security, our anti-climb palisade fencing combines ornamental European aesthetics with industrial-grade protection. Fabricated from structural steel sections featuring I-beam vertical posts (80x80x3mm) and diamond-profiled pales (55x10x3mm), the system undergoes triple-layer protection: hot dip galvanizing (275g/㎡), electrostatic powder coating (80μm), and polyester thermosetting finish. Exceeds EN 10244-2 and ASTM A123 corrosion resistance standards.

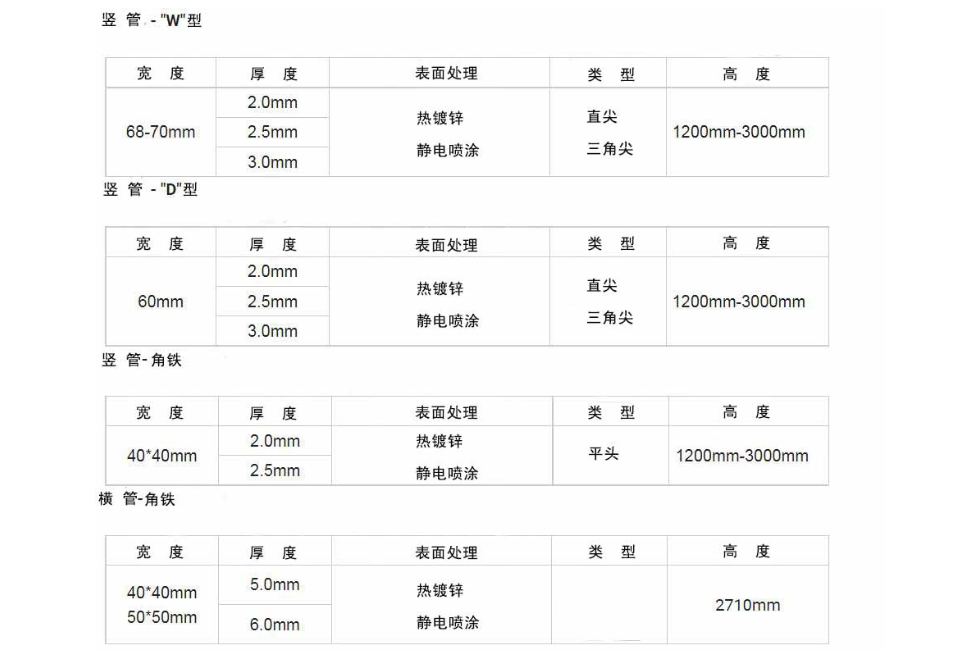

Core Technical Specifications
| Parameter | Specification |
|---|
| Material Grade | S355JR Structural Steel (EN 10025) |
| Coating System | 85μm Zn + 50μm Epoxy Primer + 80μm Polyester |
| Pale Dimensions | 55mm(W) x 10mm(Th) x 3mm(G) |
| Post Configuration | 80x80x3mm I-Beam with 45x45mm Base Tube |
| Mesh Opening | 76x16mm Standard (Custom 50-150mm) |

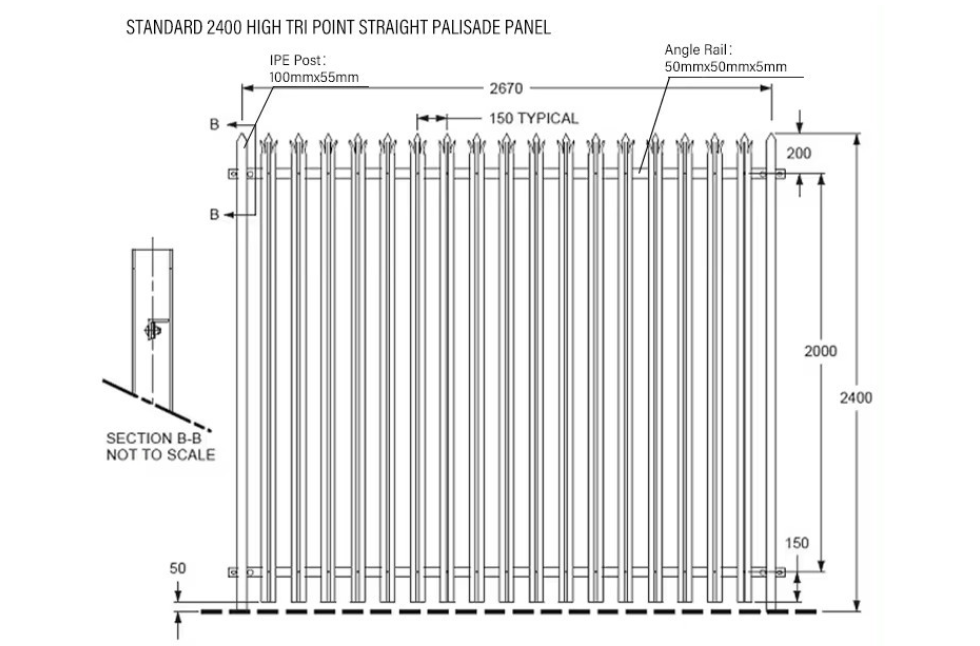

| Panel Dimensions | 2.4m(H) x 2.5m(W) (Max 3.5mH x 3mW) |
| Impact Resistance | 150J (BS EN 1317-2 Crash Rated) |
| Wind Load Rating | Class C (EN 1991-1-4: 0.8 kN/㎡) |
| Service Life | 50+ Years (ISO 9223 C4 Corrosive Environment) |

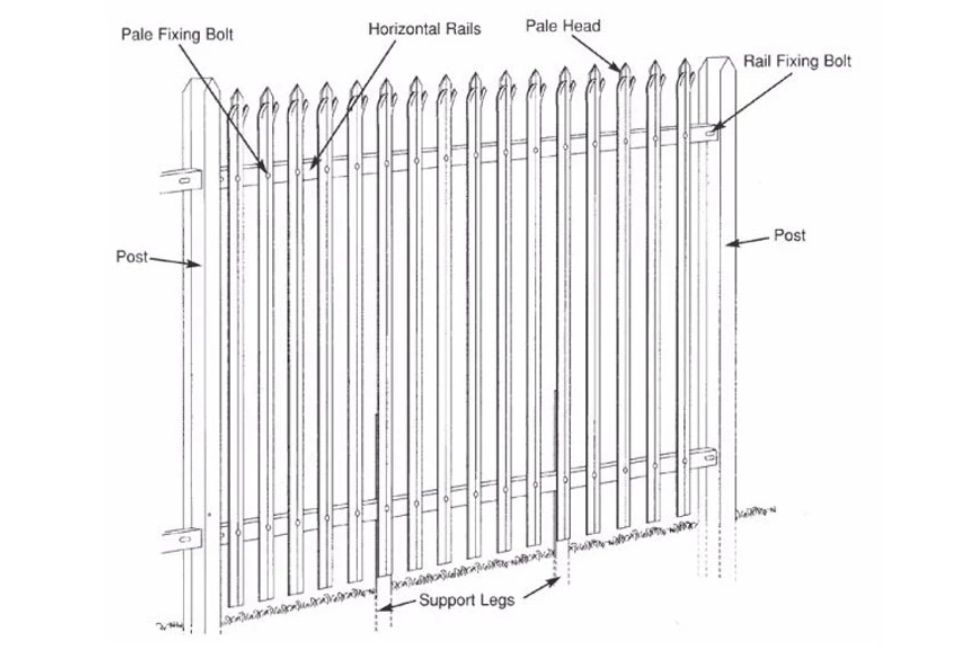

Structural Advantages
1 Military-Grade Security
45° spearhead pale tops deter climbing attempts
Continuous weld construction withstands 500kg lateral force
Interlocked panels eliminate footholds (clear span ≤100mm)
2 Advanced Corrosion Protection
Zinc-iron alloy layer: ≥275g/㎡ per ISO 1461
Salt spray resistance: >1,200 hours (ASTM B117)
UV-resistant polyester coating (RAL color options)
3 Engineering Precision
Automated CNC-bent pales with ±0.5mm tolerance
Post foundations pre-drilled for M20 anchor bolts
Pre-assembled panels reduce installation time by 60%
Installation System
Base Solution: 150x150mm ground sockets with leveling shims
Mounting: Concrete footing (min C25/30 grade) or direct-driven posts
Gates: Motorized sliding options (3m clear span, 1,500kg capacity)
Extensions: Angled adaptors for 15°-30° slope terrain
Compliance Certifications
CE Marking: CPR 305/2011 (Construction Products Regulation)
Mechanical Properties: EN 10025 S355JR
Corrosion Protection: ISO 1461 Class G275
Safety: BS 1722-12 Fencing Standards
Application Scenarios
• Gated community perimeter security (Class III anti-intrusion)
• Critical infrastructure protection (substations, pipelines)
• Educational institutional boundaries (schools, campuses)
• Luxury villa landscape demarcation
• Solar farm security fencing
Customization Options
Top Designs: Spearhead / Flat top / Scroll ornamentation
Infills: Laser-cut patterns / Decorative finials

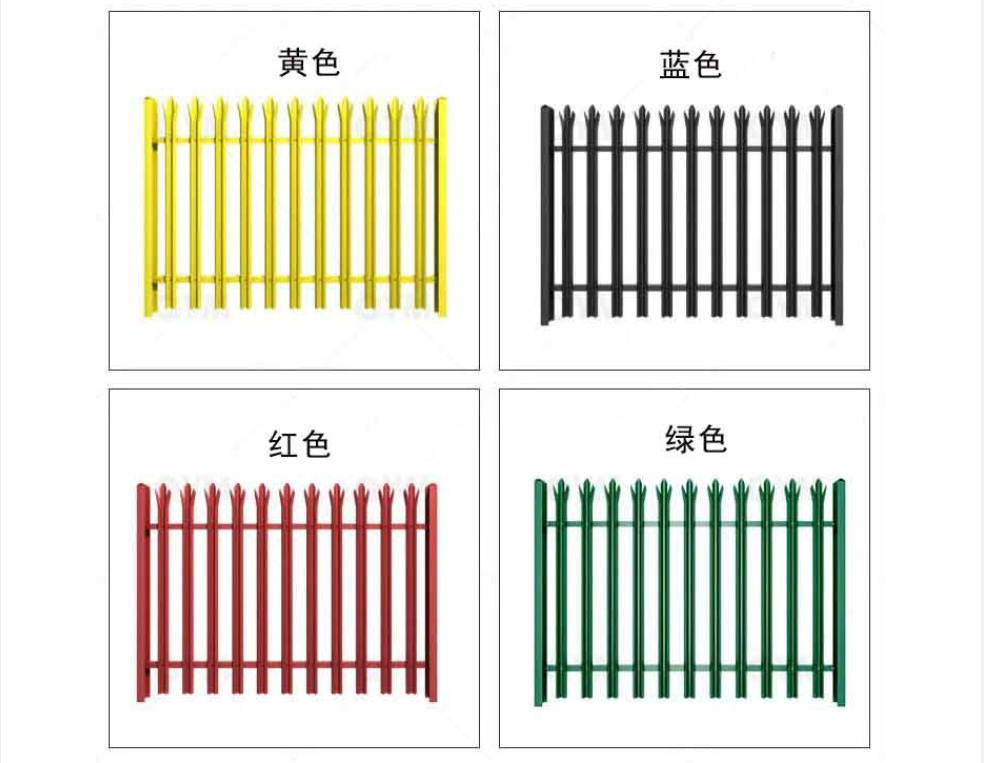

Color Systems: RAL powder coating (9005 Black / 7016 Anthracite standard)
Accessories: CCTV mounting brackets / PIR sensor integration
Export Packaging
Panel stacks shrink-wrapped on wooden pallets
Post protectors with corner guards
Component kits in weatherproof crates
Installation manuals with IFC drawings
Ordering Parameters
Specify:
Panel height (2.0m / 2.4m / 3.0m / 3.5m)
Pale spacing (76mm / 100mm / 150mm)
Surface finish (RAL code / Mill galvanized)
Gate configuration (sliding / swing / automation)
Technical Differentiation Points
I-Beam vs Tubular Posts
Galvanizing Process

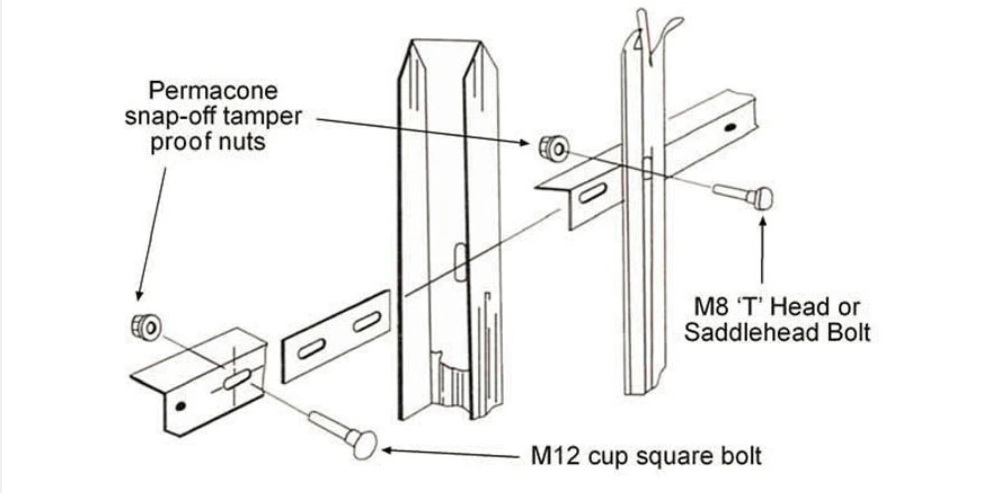

Anti-Tamper Features
