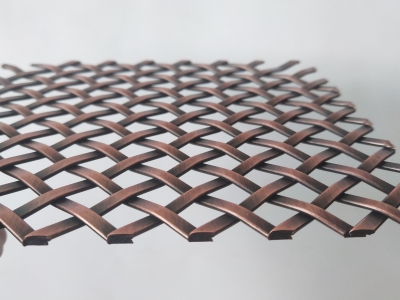

Copper wire knitted mesh rodent-proof heat dissipation wine brewing distillation vapor-liquid filtration net signal shielding particle screening copper wire mesh

Dutai Wire Mesh

Product Overview
Our electrostatically shielded copper meshes are engineered for critical industrial applications requiring precision filtration, electromagnetic interference (EMI) suppression, and thermal management. Crafted from oxygen-free C10100 pure copper (99.99% Cu) and C51900 phosphor bronze alloys, these meshes deliver unmatched electrical conductivity (≥98% IACS), corrosion resistance, and mechanical durability. Ideal for aerospace, electronics manufacturing, laboratory equipment, and telecommunications infrastructure.



Key Technical Specifications

ParameterPure Copper MeshPhosphor Bronze Mesh
Material StandardASTM B152 C10100ASTM B103 C51900
Conductivity≥100% IACS at 20°C≥22% IACS at 20°C
Thermal Conductivity398 W/m·K109 W/m·K
Tensile Strength210-310 MPa550-690 MPa
Operating Temp-200°C to +250°C-196°C to +200°C
Surface Resistivity<0.1 Ω/sq<0.5 Ω/sq
Shielding Effectiveness60-100 dB (10MHz-10GHz)45-85 dB (10MHz-10GHz)
Mesh Options10-500 mesh20-400 mesh
Wire Diameter0.03mm - 2.0mm0.05mm - 1.5mm

Core Functional Advantages
1. Electrostatic Dissipation (ESD Protection)

  • Surface resistance <10<sup>3</sup> Ω ensures static charge neutralization in explosive environments (ATEX/IECEx compliance)

  • Prevents component damage during semiconductor handling or pharmaceutical powder processing

2. EMI/RFI Shielding Performance

  • Faraday cage structure blocks 99.999% RF signals (tested per MIL-STD-285)

  • Critical for:
    ▸ Military communication enclosures
    ▸ Medical MRI room containment
    ▸ 5G base station EM isolation

3. Precision Filtration Capabilities

  • Tolerance: ±3μm for micron-grade separation

  • Chemical resistance: Withstands acids, alkalis, and organic solvents (pH 3-11)

  • Applications:
    ▸ Fuel cell catalyst recovery
    ▸ High-purity chemical sieving
    ▸ Food-grade oil filtration (FDA/EC1935 compliant)

4. Thermal Management Properties

  • Heat transfer coefficient: 320-380 W/m²·K

  • Used in:
    ▸ Power electronics heatsink interfaces
    ▸ Satellite thermal control systems
    ▸ Battery module cooling arrays

Material Selection Guide

Application ScenarioRecommended MaterialRationale
Ultra-high vacuum systemsOFHC CopperOutgassing rate <10<sup>-9</sup> Torr·L/sec/cm²
Wear-resistant sievingPhosphor Bronze20% higher hardness than pure copper
Cryogenic environmentsC10100 CopperMaintains ductility at -196°C
Marine corrosion zonesTin-plated BronzeSalt spray resistance >1000 hrs

Customization Services

  • Weaving patterns: Plain weave, twill weave, Dutch weave

  • Edge finishing: Ultrasonic welding, hemmed borders, flange mounting

  • Surface treatments: Electropolishing, nickel plating, passivation

  • Dimensional tailoring: Custom panel sizes up to 3m × 10m, cylindrical cages

Compliance & Certifications

  • RoHS 3 (2015/863/EU)

  • REACH SVHC <0.1% w/w

  • ISO 9001:2015 quality management

  • Material test reports (MTR) available

Typical Industrial Use Cases
• Particle accelerator beamline collimators (CERN specification)
• EMI gasketing for aircraft avionics (DO-160G compliant)
• Electrochemical reactor current collectors
• Cleanroom HEPA filter reinforcement
• RF test chamber ventilation windows

Ordering Information
Specify:

  • Alloy type (C10100 / C51900)

  • Mesh count (lines per inch/cm)

  • Wire diameter (mm)

  • Dimensions (L × W × Thickness)

  • Surface treatment (if required)

Export Packaging

  • VCI-coated waterproof kraft paper

  • Edge-protected plywood crates

  • ESD-safe sealed containers

  • Humidity indicator cards included
