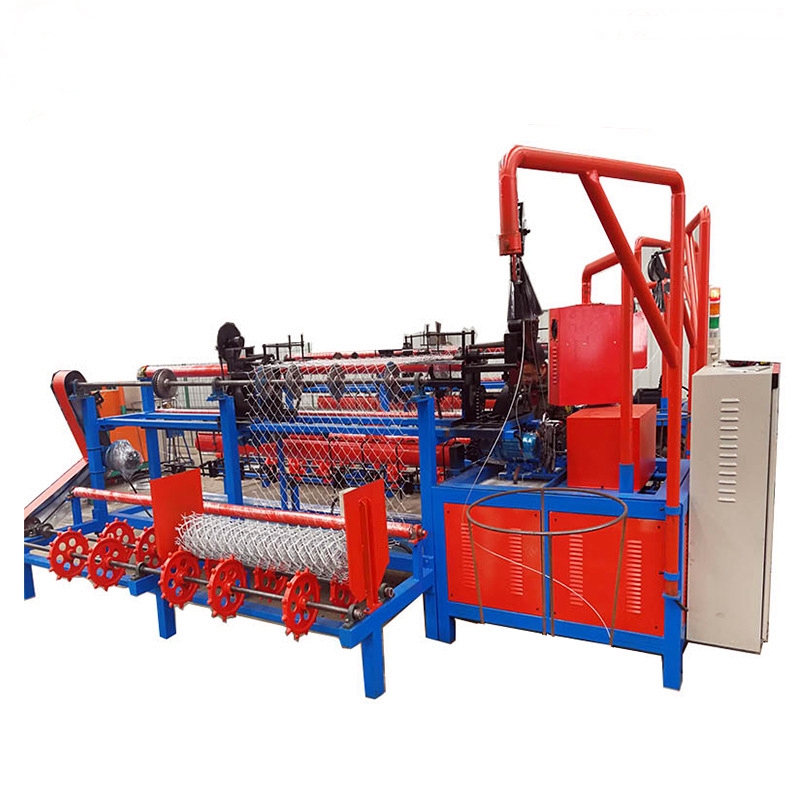

Curved-edge and twisted-edge double-thread tube type fully automatic patterned wire mesh machine - Rhombic mesh machine

Curved-edge and twisted-edge double-thread tube type fully automatic patterned wire mesh machine - Rhombic mesh machine

The rhombic mesh machine is also known as the hooked mesh machine, metal wire weaving machine, anchor mesh machine, tree root mesh machine, coal mine support mesh machine, fish basket mesh machine, mattress mesh machine, conveyor belt mesh machine, stadium fence machine, fence mesh machine, and protective mesh machine, etc. It is controlled by CNC computer numerical PLC module. It is controlled by servo motors.

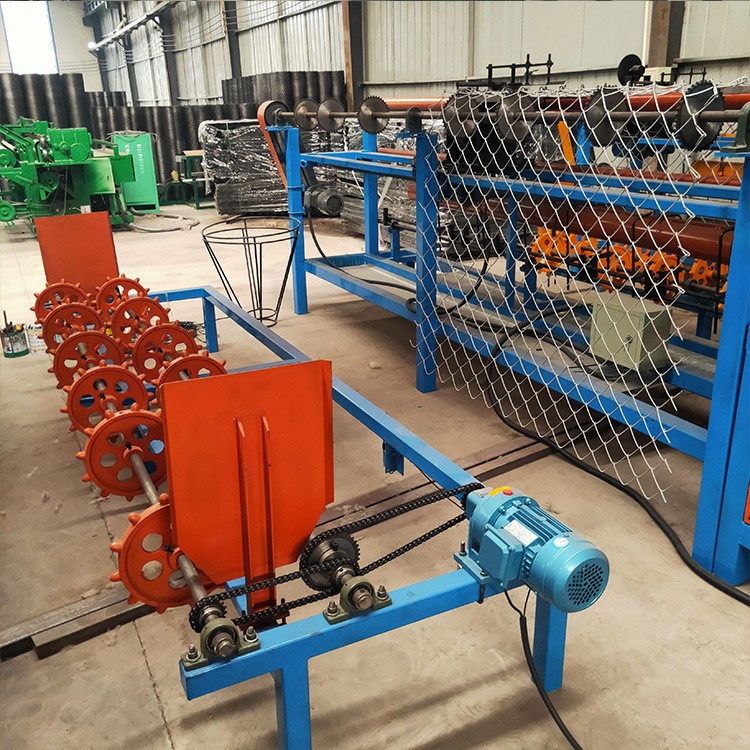

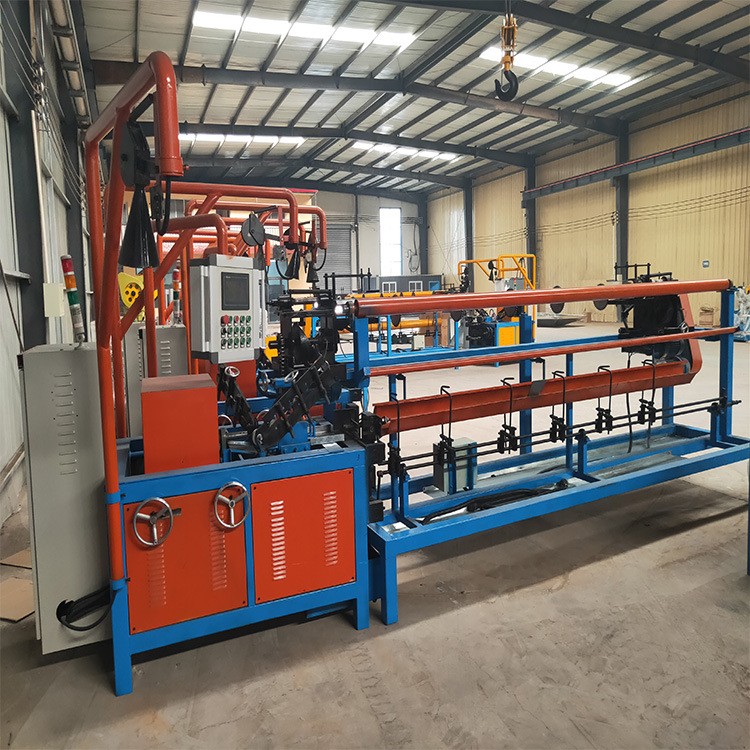

The diamond mesh machine (woven mesh machine) consists of: control console, support frame, mesh weaving part, edge folding part, and net rolling part.

Touchscreen control system.

Automatic web weaving, cutting, edge folding and edge twisting, web rolling. .

Set the weaving speed on the touch screen.

User Instructions:

Refer to the manufacturer's user manual to correctly install and arrange the equipment, properly connect the lines, pour the boiled soap water into the tank, place the wire on the wire rack, then insert the spiral wire equipment (mold), turn on the PLC control panel, press the start button, select manual adjustment, set the desired net width, machine speed, and net length according to your needs. After adjusting, press the automatic key. Note: The initial use of the machine is in the running-in period. The running speed should not be too fast in the first two days. After the mold has run-in, you can increase the speed (after 2-3 days), and then it can be used normally.

Packaging list:

Winding frame, PLC control console, machine, mold box, cable box. The important parts are wrapped with anti-collision film, while the other parts are wrapped with packaging film.

Applications/Application Fields:

It is used for manufacturing coal mine support nets, checkered nets, fences (community fences, sports field fences), mountain protection nets, garden fences, venue fences, vegetable garden fences, horticultural fences, plant cultivation fences, animal fences, storage cages, animal cages, wall fences, grassland fences, border fences, road fences, highway fences, machinery transportation nets, processing nets, decorative nets, etc. It is widely applied in excellent expressways, sports fields, parks, warehouses, zoos, construction site fences, poultry enclosure, slope greening, pipeline insulation nets, etc.
